CXA3355AER - GPS Down Converter IC

CXA3355AER Description

www.DataSheet4U.com GPS Down Converter IC CXA3355AER .
The CXA3355AER is an IC developed as a GPS RF down converter.

CXA3355AER Features

* ‹ Includes all functions required for the GPS down converter ‹ Low voltage operation: VCC = 1.6 to 2.0V ‹ Low current consumption (active mode): 11mA (Typ. at VCC = 1.8V, IF ≈ 1MHz) ‹ Low current consumption (power save mode) < 1μA ‹ Total gain ≈ 100dB ‹ Total NF ≈ 4dB ‹ On-chip VCO and PLL ‹ Suppor

📥 Download Datasheet

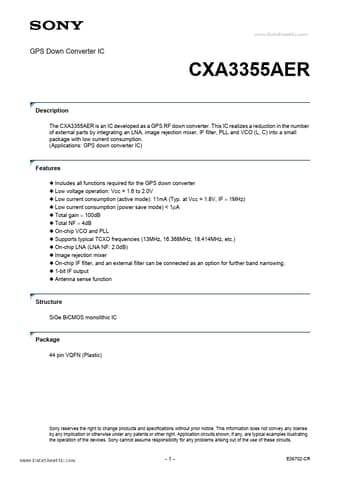

Preview of CXA3355AER PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA3355AER
Manufacturer
Sony
File Size
447.93 KB
Datasheet
CXA3355AER_Sony.pdf
Description
GPS Down Converter IC
