CXD2510Q - CD digital Signal Processor

Sony

📥 Download Datasheet

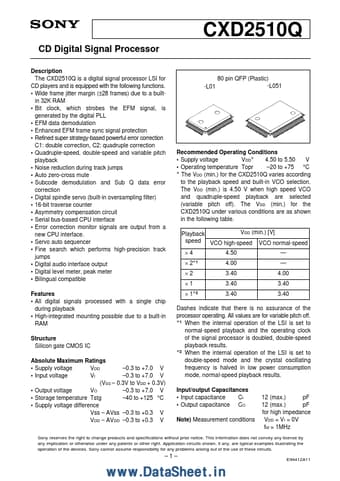

CXD2510Q Datasheet Preview — Preview of CXD2510Q PDF

Datasheet Details

Part number	CXD2510Q
Manufacturer	Sony
File Size	684.36 KB
Description	CD digital Signal Processor
Datasheet	CXD2510Q_Sony.pdf

CXD2510Q Product details

Description

The CXD2510Q is a digital signal processor LSI for CD players and is equipped with the following functions. Wide frame jitter margin (±28 frames) due to a builtin 32K RAM Bit clock, which strobes the EFM signal, is generated by the digital PLL EFM data demodulation Enhanced EFM frame sync signal protection Refined super strategy-based powerful error correction C1: double correction, C2: quadruple correction Quadruple-speed, double-speed

Features

All digital signals processed with a single chip during playback.
High-integrated mounting possible due to a built-in RAM Structure Silicon gate CMOS IC Absolute Maximum Ratings VDD.
Supply voltage.
0.3 to +7.0 V.
Input voltage VI.
0.3 to +7.0 V (VSS.
0.3V to VDD + 0.3V).
Output voltage VO.
0.3 to +7.0 V.
Storage temperature Tstg.
40 to +125 °C.
Supply voltage difference Vss.
AVss.
