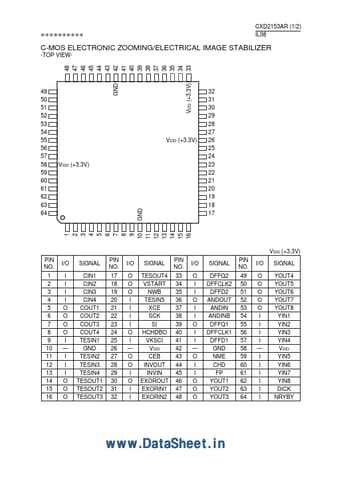

-TOP VIEW48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
CXD2153AR (1/2) IL08
C-MOS ELECTRONIC ZOOMING/ELECTRICAL IMAGE STABILIZER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
GND
49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
VDD (+3.3V)
GND
VDD (+3.3V)
VDD (+3.3V)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
VDD (+3.3V) PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 I/O I I I I O O O O I — I I I O O O SIGNAL CIN1 CIN2 CIN3 CIN4 COUT1 COUT2 COUT3 COUT4 TESIN1 GND TESIN2 TESIN3 TESIN4 TESOUT1 TESOUT2 TESOUT3 PIN NO. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 I/O O O O I I I I O I — O O I O I I SIGNAL TESOUT4 VSTART NWB TESIN5 XCE SCK SI HCHDBO VKSCI VDD CEB INVOUT INVIN EXOROUT EXORIN1 EXORIN2 PIN NO.
