CXD2024AQ C-MOS DIGITAL COMB FILTER

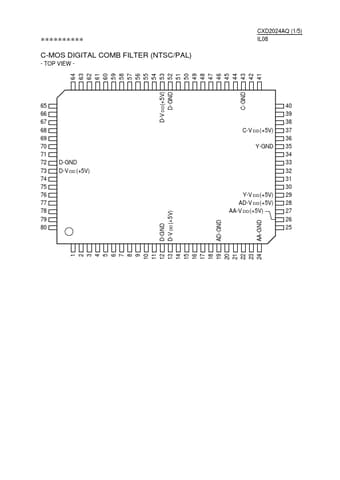

C-MOS DIGITAL COMB FILTER (NTSC/PAL) - TOP VIEW - CXD2024AQ (1/5) IL08 D-V DD (+5V) D-GND C-GND 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 D-GND D-V DD (+5V) AD-GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 AA-GND 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C-V DD (+5V) Y-GND D-GND D-V DD (+5V) Y-V DD (+5V) AD-V DD (+5V) AA-V DD (+5V) 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 2.
