CXD2044Q Datasheet, (ntsc/pal/pal-m/pal-n), Sony Corporation

CXD2044Q Features

  • (ntsc/pal/pal-m/pal-n)
  • Intra-field Y/C separation by adaptive processing
  • 8-bit A/D converter (1-channel)
  • 8-bit D/A converter (2-channel)
  • Four 1H delay lines
  • C

PDF File Details

Part number:

CXD2044Q

Manufacturer:

Sony Corporation

File Size:

242.74kb

Download:

📄 Datasheet

Description:

Digital comb filter (ntsc/pal/pal-m/pal-n). The CXD2044Q is an adaptive intra-field comb filter compatible with NTSC, PAL, PAL-M and PAL-N systems, and can provide high-precisio

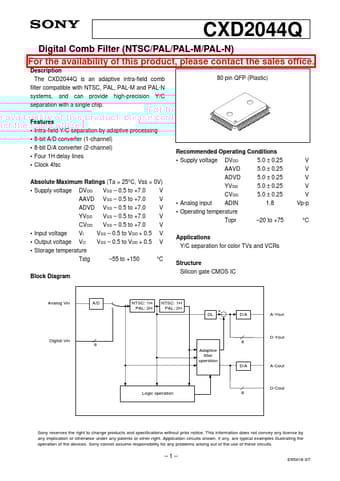

Datasheet Preview: CXD2044Q 📥 Download PDF (242.74kb)
Page 2 of CXD2044Q Page 3 of CXD2044Q

CXD2044Q Application

  • Applications Y/C separation for color TVs and VCRs Structure Silicon gate CMOS IC Analog Vin A/D NTSC: 1H PAL: 2H NTSC: 1H PAL: 2H DL D/A A-Yout
