CXD2064Q - Digital Comb Filter (NTSC/PAL)

Sony Corporation

The CXD2064Q by Sony Corporation is a Digital Comb Filter (NTSC/PAL). Below is the official datasheet preview.

📥 Download Datasheet

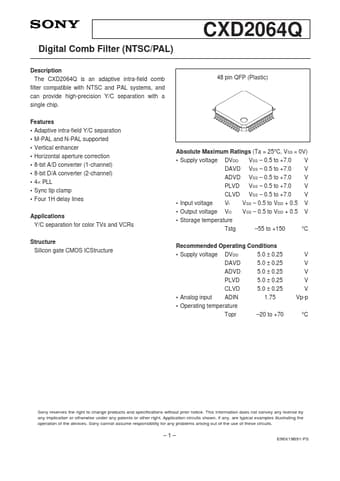

CXD2064Q Digital Comb Filter (NTSC/PAL) by Sony Corporation - Datasheet Preview — Official preview page of the **CXD2064Q** Digital Comb Filter (NTSC/PAL) datasheet (Sony Corporation).

Datasheet Details

Part number	CXD2064Q
Manufacturer	Sony Corporation
File Size	266.04 KB
Description	Digital Comb Filter (NTSC/PAL)
Datasheet	CXD2064Q_SonyCorporation.pdf
Additional preview pages of the CXD2064Q datasheet.

CXD2064Q Product details

Description

The CXD2064Q is an adaptive intra-field comb filter compatible with NTSC and PAL systems, and can provide high-precision Y/C separation with a single chip.

Features

Adaptive intra-field Y/C separation.
M-PAL and N-PAL supported.
Vertical enhancer.
Horizontal aperture correction.
8-bit A/D converter (1-channel).
8-bit D/A converter (2-channel).
4× PLL.
Sync tip clamp.
Four 1H delay lines.
