CXD2408AR - Timing Generator for Progressive Scan CCD Image Sensor

CXD2408AR Description

CXD2408AR Timing Generator for Progressive Scan CCD Image Sensor .
The CXD2408AR is an IC developed to generate the timing pulses required by the Progressive Scan CCD image sensors as well as signal processing circuit.

CXD2408AR Features

* EIA support
* Electronic shutter function
* Random trigger shutter function
* Sync signal generator
* Supports external synchronization
* Supports non-interlaced operation

CXD2408AR Applications

* Progressive Scan CCD cameras Structure Silicon gate CMOS IC Absolute Maximum Ratings
* Supply voltage VDD VSS
* 0.5 to +7.0 V
* Input voltage VI VSS
* 0.5 to VDD + 0.5 V
* Output voltage VO VSS
* 0.5 to VDD + 0.5 V
* Operating temperatu

📥 Download Datasheet

Preview of CXD2408AR PDF

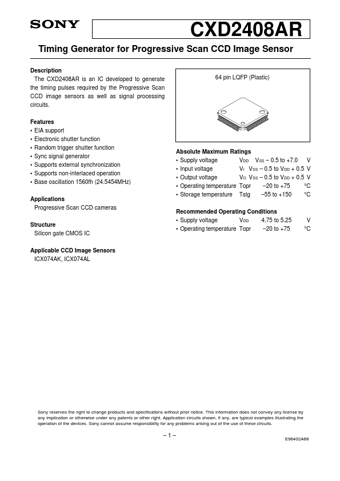

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXD2408AR
Manufacturer
Sony
File Size
313.24 KB
Datasheet
CXD2408AR-Sony.pdf
Description
Timing Generator for Progressive Scan CCD Image Sensor
