CXD2411AR - Timing Generator for Color LCD Panels

CXD2411AR Description

CXD2411AR Timing Generator for Color LCD Panels For the availability of this product, please contact the sales office..
The CXD2411AR is a timing signal generator for color LCD panel drivers. Generates the LCX005BK/BKB and LCX009AK/AKB drive pulse.

CXD2411AR Features

* Generates the LCX005BK/BKB and LCX009AK/AKB drive pulse.
* Supports right/left inverse display.
* Supports 16:9 wide display.
* Supports CSYNC and Separate SYNC (XHD, XVD) input.
* Supports line inversion and field inversion.
* AC drive for LCD panel

CXD2411AR Applications

* Color LCD viewfinder
* Single-panel and three-panel projectors Structure Silicon gate CMOS IC 48 pin LQFP (Plastic) Absolute Maximum Ratings (Ta = 25°C) VSS
* 0.5 to +7.0 V
* Supply voltage VDD
* Input voltage VI VSS
* 0.5 to VDD + 0.5 V
* O

📥 Download Datasheet

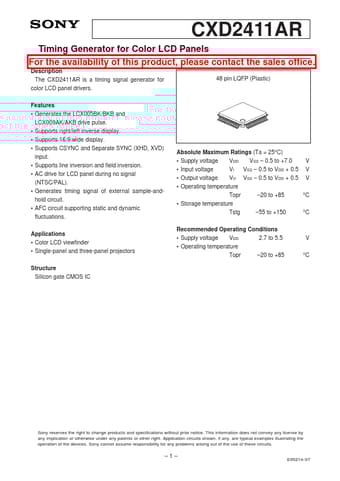

Preview of CXD2411AR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXD2411AR
Manufacturer
Sony Corporation
File Size
1.12 MB
Datasheet
CXD2411AR_SonyCorporation.pdf
Description
Timing Generator for Color LCD Panels
