CXD2409R Datasheet, Icx076/077al, Sony Corporation

CXD2409R Features

  • Icx076/077al
  • Supports EIA/CCIR standards
  • Electronic iris (electronic shutter) function
  • Sync signal generation function
  • Backlight compensation function

PDF File Details

Part number:

CXD2409R

Manufacturer:

Sony Corporation

File Size:

1.39MB

Download:

📄 Datasheet

Description:

Timing controller for icx076/077al. The CXD2409R is a timing controller for CCD camera systems which use the ICX076/077AL black-and-white CCD image sensors. Features

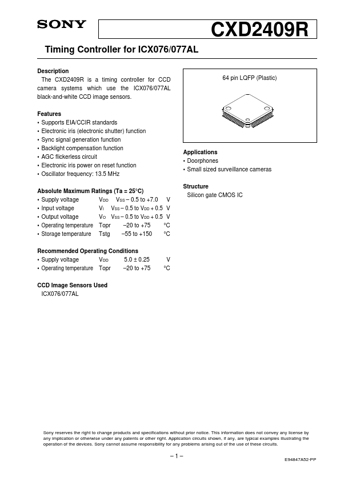

Datasheet Preview: CXD2409R 📥 Download PDF (1.39MB)
Page 2 of CXD2409R Page 3 of CXD2409R

CXD2409R Application

  • Applications
  • Doorphones
  • Small sized surveillance cameras Structure Silicon gate CMOS IC V °C Sony reserves the right to change
