CXD2408R - Timing Generator for Progressive Scan CCD Image Sensor

CXD2408R Description

CXD2408R Timing Generator for Progressive Scan CCD Image Sensor For the availability of this product, please contact the sales office..

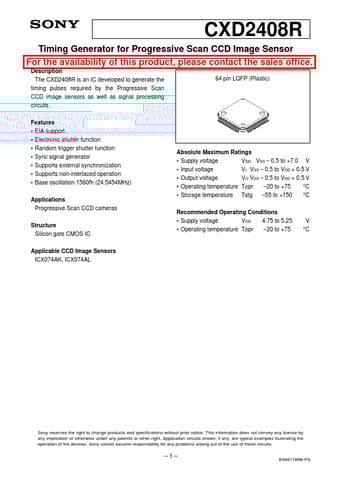

The CXD2408R is an IC developed to generate the timing pulses required by the Progressive Scan CCD image sensors as well as signal processing circuits.

CXD2408R Features

* EIA support
* Electronic shutter function
* Random trigger shutter function
* Sync signal generator
* Supports external synchronization
* Supports non-interlaced operation

CXD2408R Applications

* Progressive Scan CCD cameras Structure Silicon gate CMOS IC Applicable CCD Image Sensors ICX074AK, ICX074AL 64 pin LQFP (Plastic) Absolute Maximum Ratings
* Supply voltage VDD VSS
* 0.5 to +7.0 V
* Input voltage VI VSS
* 0.5 to VDD + 0.5 V
* Output voltage VO
