CXG1176UR High Power DPDT Switch

CXG1176UR Description

CXG1176UR High Power DPDT Switch with Logic Control .
This IC can be used in wireless communication systems, for example, W-CDMA handsets.

CXG1176UR Features

* Low insertion loss
* 2 CMOS compatible control line

CXG1176UR Applications

* Antenna switch for cellular handsets
* Dual-Band W-CDMA Structure GaAs JPHEMT MMIC Absolute Maximum Ratings (Ta = 25°C)
* Bias voltage VDD 7 V
* Control voltage Vctl 5 V
* Operating temperature Topr
* 35 to +85 °C
* Storage temperature Tstg

📥 Download Datasheet

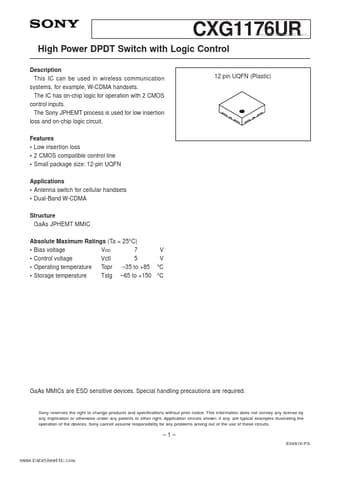

Preview of CXG1176UR PDF
