HCD-RG470, HCD-GX255 Datasheet - Sony

HCD-RG470 COMPACT DISC DECK RECEIVER SERVICE MANUAL

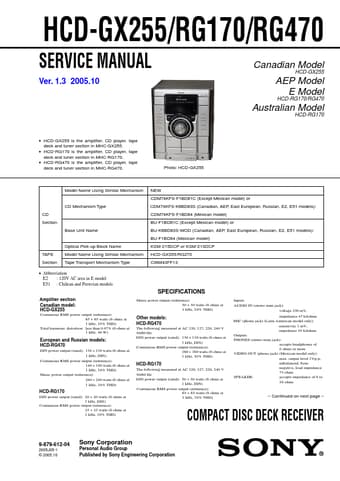

HCD-GX255/RG170/RG470 SERVICE MANUAL Ver. 1.3 2005.10 Canadian Model HCD-GX255 AEP Model E Model HCD-RG170/RG470 Australian Model HCD-RG170 HCD-GX255 is the amplifier, CD player, tape deck and tuner section in MHC-GX255. HCD-RG170 is the amplifier, CD player, tape deck and tuner section in MHC-RG170. HCD-RG470 is the amplifier, CD player, tape deck and tuner section in MHC-RG470. Photo: HCD-GX255 Model Name Using Similar Mechanism NEW CDM74KFS-F1BD81C (Except.

HCD-GX255-Sony.pdf

This datasheet PDF includes multiple part numbers: HCD-RG470, HCD-GX255. Please refer to the document for exact specifications by model.
HCD-RG470 Datasheet Preview Page 2 HCD-RG470 Datasheet Preview Page 3

Datasheet Details

Part number:

HCD-RG470, HCD-GX255

Manufacturer:

Sony

File Size:

12.80 MB

Description:

Compact disc deck receiver service manual.

Note:

This datasheet PDF includes multiple part numbers: HCD-RG470, HCD-GX255.
Please refer to the document for exact specifications by model.
