ICX209AK - Diagonal 4.5mm (Type 1/4) CCD Image Sensor

Product Overview

Sony

Datasheet Details

Part number	ICX209AK
Manufacturer	Sony
File Size	228.15 KB
Description	Diagonal 4.5mm (Type 1/4) CCD Image Sensor
Datasheet	ICX209AK Datasheet
Additional preview pages of the ICX209AK datasheet.

Product details

Description

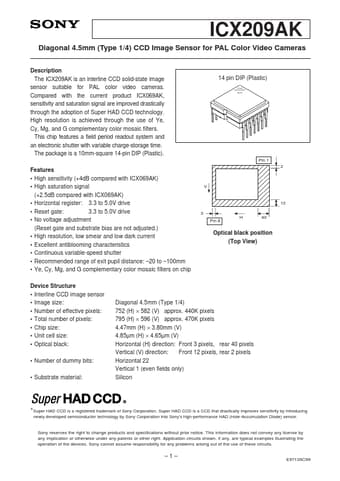

The ICX209AK is an interline CCD solid-state image sensor suitable for PAL color video cameras.Compared with the current product ICX069AK, sensitivity and saturation signal are improved drastically through the adoption of Super HAD CCD technology.High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters.This chip

Features

a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features.
High sensitivity (+4dB compared with ICX069AK).
High saturation signal (+2.5dB compared with ICX069AK).
Horizontal register: 3.3 to 5.0V drive.
Reset gate: 3.3 to 5.0V drive.
No voltage adjustment (Reset gate and substrate bias are not adjusted. ).
High resolution, low smear and low d.
