ICX204AL - Diagonal 6mm (Type 1/3) Progressive Scan CCD Image Sensor

ICX204AL Description

ICX204AL Diagonal 6mm (Type 1/3) Progressive Scan CCD Image Sensor with Square Pixel for B/W Cameras .
The ICX204AL is a diagonal 6mm (Type 1/3) interline CCD solid-state image sensor with a square pixel array and 800K effective pixels.

ICX204AL Features

* an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. Further, high sensitivity and low dark current are achieved through the adoption of HAD (HoleAccumulation Diode) sensors. This chip is suitable for applicat

📥 Download Datasheet

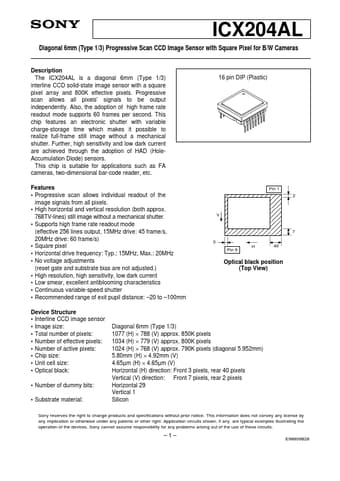

Preview of ICX204AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICX204AL
Manufacturer
Sony
File Size
264.35 KB
Datasheet
ICX204AL-Sony.pdf
Description
Diagonal 6mm (Type 1/3) Progressive Scan CCD Image Sensor
