ICX206AK

CCD Image Sensor

ICX206AK Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features

* High sensitivity (+4dB compared with ICX086AK)

* High saturation signal (+2.2dB compared with ICX086AK)

* Horizontal regist

ICX206AK General Description

The ICX206AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras. Compared with the current product ICX086AK, sensitivity and saturation signal are improved drastically through the adoption of Super HAD CCD technology. Ye, Cy, Mg, and G complementary color mosaic filte.

ICX206AK Datasheet (228.31 KB)

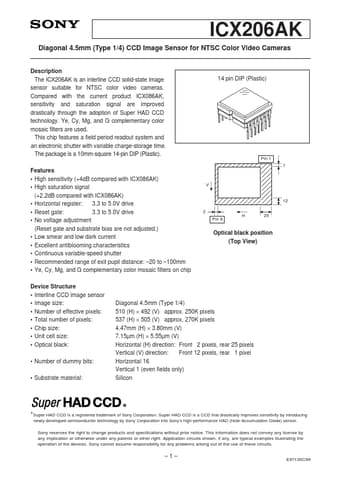

Preview of ICX206AK PDF

Datasheet Details

Part number:

ICX206AK

Manufacturer:

Sony

File Size:

228.31 KB

Description:

Ccd image sensor.
