ICX206AL - CCD Image Sensor

ICX206AL Description

ICX206AL Diagonal 4.5mm (Type 1/4) CCD Image Sensor for EIA B/W Video Cameras .
The ICX206AL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras.

ICX206AL Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features
* High sensitivity (+4dB compared with ICX086AL)
* High saturation signal (+2.2dB compared with ICX086AL)
* Horizontal regist

📥 Download Datasheet

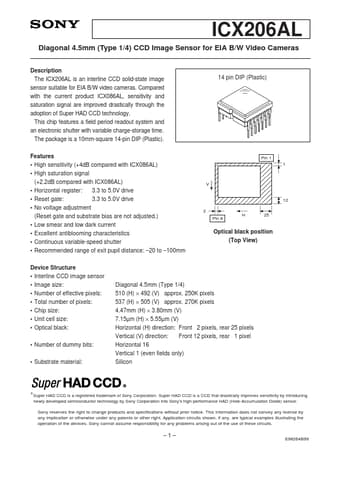

Preview of ICX206AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICX206AL
Manufacturer
Sony
File Size
216.67 KB
Datasheet
ICX206AL_Sony.pdf
Description
CCD Image Sensor
