ICX413AQ

Diagonal 28.40mm (Type 1.8) Frame Readout CCD Image Sensor

ICX413AQ Features

* Frame readout mode

* High horizontal and vertical resolution

* Square pixel

* Horizontal drive frequency: 25.0MHz

* R, G, B primary color mosaic filters on chip

* High sensitivity, low dark current 34 pin DIP (Plastic) Pin 1 V 20 Pin 18 H 50 De

ICX413AQ General Description

The ICX413AQ is a diagonal 28.40mm (Type 1.8) interline CCD solid-state image sensor with a square pixel array and 6.15M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/3.08 second. Adoption of a design specially suited for frame readout e.

ICX413AQ Datasheet (183.82 KB)

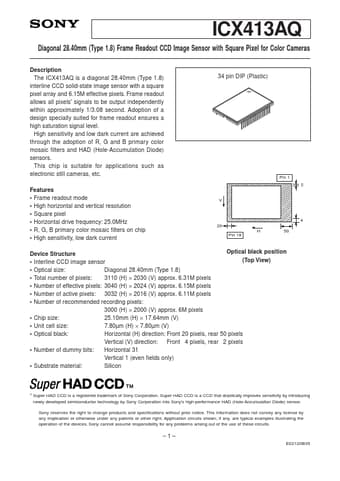

Preview of ICX413AQ PDF

Datasheet Details

Part number:

ICX413AQ

Manufacturer:

Sony

File Size:

183.82 KB

Description:

Diagonal 28.40mm (type 1.8) frame readout ccd image sensor.
