ICX418AKL - Diagonal 8mm (Type 1/2) CCD Image Sensor

Description

image sensor suitable for NTSC color video cameras with a diagonal 8mm (Type 1/2) system.

Compared with the current product ICX038DNA, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically.

Features

  • a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX038DNA and has the same drive conditions. 20 pin DIP (Cer-DIP) Pin 1 2 Features.
  • High sensitivity (+6.0dB compared with the ICX038DNA) V.
  • Low smear (.
  • 5.0dB compared with the ICX038DNA).
  • High D range (+2.0dB compared with the ICX038DNA).
  • High S/N.
  • High resolution and low dark current 3 Pin 11 H 40.

📥 Download Datasheet

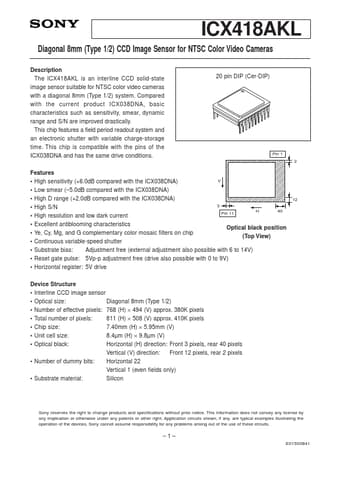

Datasheet preview – ICX418AKL
