ICX434AQ

Diagonal 5.68mm (Type 1/3.2) Frame Readout CCD Image Sensor

ICX434AQ Features

* an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout. High resolution and high color reproductivity are achieved through the use of R, G, B primary color mosaic filter

ICX434AQ General Description

The ICX434AQ is a diagonal 5.68mm (Type 1/3.2) interline CCD solid-state image sensor with a square pixel array and 2.02M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode suppor.

ICX434AQ Datasheet (335.30 KB)

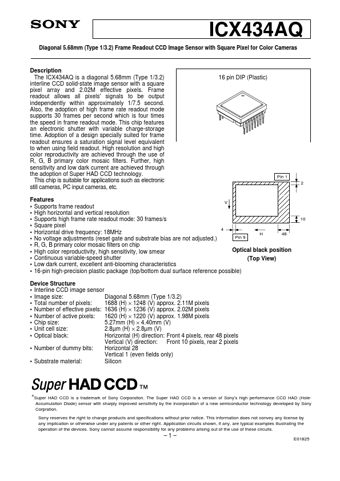

Preview of ICX434AQ PDF

Datasheet Details

Part number:

ICX434AQ

Manufacturer:

Sony

File Size:

335.30 KB

Description:

Diagonal 5.68mm (type 1/3.2) frame readout ccd image sensor.
