ICX434DQN Datasheet, Sensor, Sony

ICX434DQN Features

  • Sensor an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout

PDF File Details

Part number:

ICX434DQN

Manufacturer:

Sony

File Size:

329.01kb

Download:

📄 Datasheet

Description:

Diagonal 5.68mm (type 1/3.2) frame readout ccd image sensor. The ICX434DQN is a diagonal 5.68mm (Type 1/3.2) interline CCD solid-state image sensor with a square pixel array and 2.02M effective

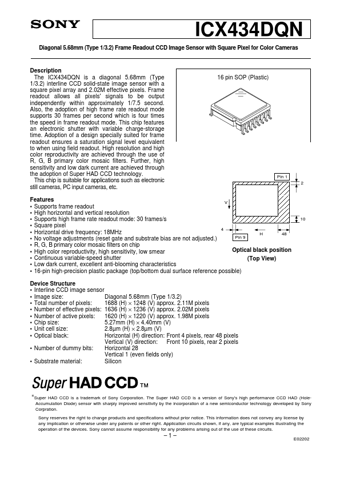

Datasheet Preview: ICX434DQN 📥 Download PDF (329.01kb)
Page 2 of ICX434DQN Page 3 of ICX434DQN

ICX434DQN Application

  • Applications such as electronic still cameras, PC input cameras, etc. 16 pin SOP (Plastic) Pin 1 2 Features V
  • Supports frame readout
