MCX18N00A - Micro Unit CCD

MCX18N00A Description

MCX18N00A/MCX18N00B Micro Unit CCD .
The micro unit CCD is a CCD color camera unit with built-in CCD image sensor, drive system IC, sample-and-hold IC, signal processor IC and lens system.

MCX18N00A Features

* Ultra-compact size: MCX18N00A 18.3mm × 18.3mm × 8.4mm MCX18N00B 18.3mm × 18.3mm × 9.6mm
* Y/C analog output
* Employs a Type 1/5, 180,000-pixel color CCD image sensor

MCX18N00A Applications

* TV conference cameras
* Image input cameras Absolute Maximum Ratings
* Supply voltage VH DVDD1, DVDD2, AVDD6 AVDD1, AVDD2, AVDD3 AVDD4, AVDD5 VCC VL
* Input voltage VI
* Operating temperature Topr
* Storage temperature Tstg Recommended Operating Cond

📥 Download Datasheet

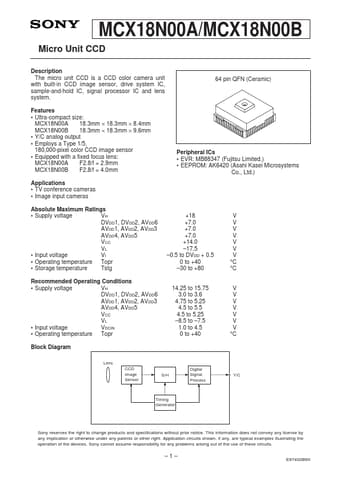

Preview of MCX18N00A PDF
datasheet Preview Page 2 datasheet Preview Page 3
