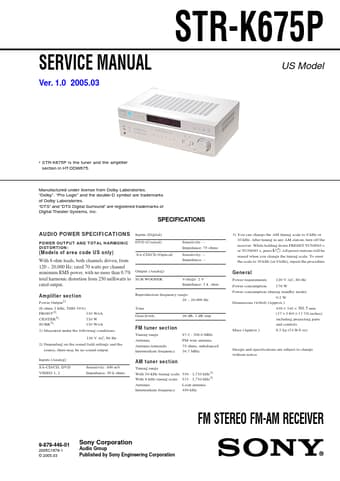

SERVICE MANUAL Ver. 1.0 2005.03 STR-K675P US Model • STR-K675P is the tuner and the amplifier section in HT-DDW675. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. SPECIFICATIONS AUDIO POWER SPECIFICATIONS Inputs (Digital) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: (Models of area code US only) With 6 ohm loads, both channels driven, from 120 – 20,000 Hz; rated 70 watts per channel minimum RMS power, with no more than 0.7% total harmonic distortion from 250 milliwatts to rated output.
