SK120A-S - Surface Mount Schottky Barrier Rectifier

Product Overview

📥 Download Datasheet

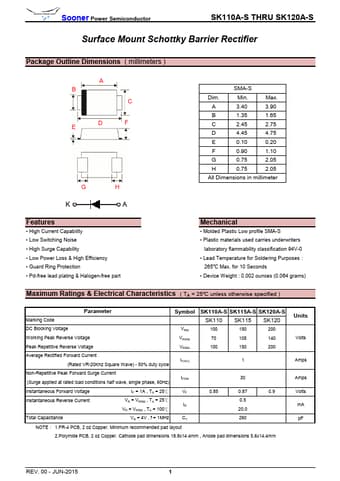

SK120A-S Surface Mount Schottky Barrier Rectifier by Sooner Power Semiconductor - Datasheet Preview — Datasheet preview – SK120A-S

Datasheet Details

Part number	SK120A-S
Manufacturer	Sooner Power Semiconductor
File Size	556.19 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SK120A-S Datasheet
Note	This datasheet PDF includes multiple part numbers: SK120A-S, SK110A-S. Please refer to the document for exact specifications by model.
Additional preview pages of the SK120A-S datasheet.

Product details

Features

High Current Capability.
Low Switching Noise.
High Surge Capability.
Low Power Loss & High Efficiency.
Guard Ring Protection.
Pd-free lead plating & Halogen-free part SMA-S Dim. Min. Max. A 3.40 3.90 B 1.35 1.65 C 2.45 2.75 D 4.45 4.75 E 0.10 0.20 F 0.90 1.10 G 0.75 2.05 H 0.75 2.05 All Dimensions in millimeter Mechanical.
Molded Plastic Low profile SMA-S.
Plastic materials used carries underwriters laboratory flammability.
