SK1200 - 1.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE

Product Overview

WON-TOP

📥 Download Datasheet

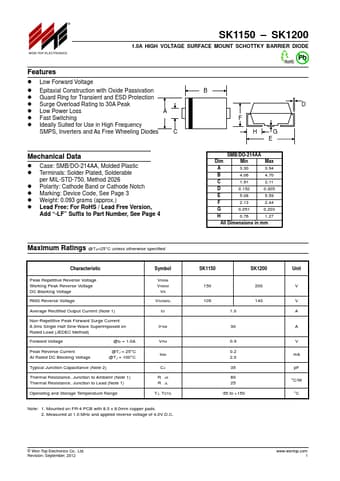

SK1200 1.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE by WON-TOP - Datasheet Preview — Datasheet preview – SK1200

Datasheet Details

Part number	SK1200
Manufacturer	WON-TOP
File Size	38.21 KB
Description	1.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	SK1200 Datasheet
Note	This datasheet PDF includes multiple part numbers: SK1200, SK1150-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the SK1200 datasheet.

Product details

Features

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 30A Peak.
Low Power Loss A.
Fast Switching.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F HG E D Mechanical Data.
Case: SMB/DO-214AA, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode N.
