MBR10U150CT - High Power Schottky Barrier Rectifier

Product Overview

📥 Download Datasheet

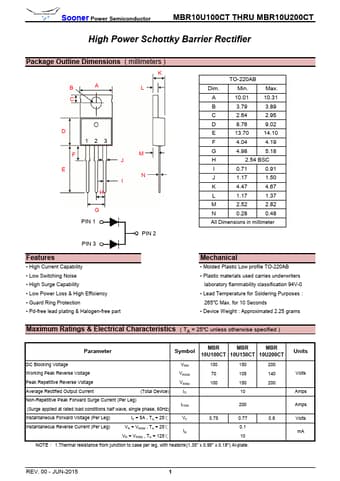

MBR10U150CT High Power Schottky Barrier Rectifier by Sooner - Datasheet Preview — Datasheet preview – MBR10U150CT

Datasheet Details

Part number	MBR10U150CT
Manufacturer	Sooner
File Size	502.26 KB
Description	High Power Schottky Barrier Rectifier
Datasheet	MBR10U150CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR10U150CT, MBR10U100CT. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR10U150CT datasheet.

Product details

Features

High Current Capability.
Low Switching Noise.
High Surge Capability.
Low Power Loss & High Efficiency.
Guard Ring Protection.
Pd-free lead plating & Halogen-free part M N PIN 2 TO-220AB Dim. Min. Max. A 10.01 10.31 B 3.79 3.89 C 2.64 2.95 D 8.76 9.02 E 13.70 14.10 F 4.04 4.19 G 4.98 5.18 H 2.54 BSC I 0.71 0.91 J 1.17 1.50 K 4.47 4.67 L 1.17 1.37 M 2.52 2.82 N 0.28 0.48 All Dimensions in millimeter Mechanical.
Molded Plastic Low pr.
