SB2040CT High Power Schottky Barrier Rectifier

SB2040CT Description

Sooner Power Semiconductor SB2040CT / SB2060CT High Power Schottky Barrier Rectifier Package Outline Dimensions ( millimeters ) K BA L C D 123.

SB2040CT Features

* High Current Capability
* Low Switching Noise
* High Surge Capability
* Low Power Loss & High Efficiency
* Guard Ring Protection
* Pd-free lead plating & Halogen-free part M N PIN 2 TO-220AB Dim. Min. Max. A 10.01 10.31 B 3.79 3.89 C 2.64 2.95 D 8.

📥 Download Datasheet

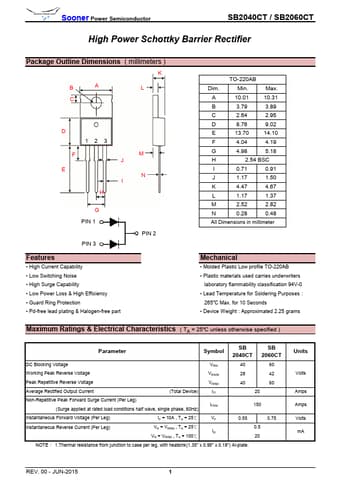

Preview of SB2040CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB2040CT
Manufacturer
Sooner
File Size
511.16 KB
Datasheet
SB2040CT-Sooner.pdf
Description
High Power Schottky Barrier Rectifier
