BP37.15MHz-2271, BP3715MHz-2271 Datasheet - Soshin

BP37.15MHz-2271 - Digital Broadcasting

BP37.15MHz-2271 Application Digital Broadcasting Characteristics BP37.15MHz-2271 Zin/Zout Insertion Loss Pass Band Ripple Attnuation Group Deray Dimensions 50 ohm (Unbaranced) 7.0dB max (at 37.15MHz) 0.3dBp-p max (34.15 up to 40.15MHz) 40dB min (0 up to 29.15MHz) 40dB min (45.3 up to 70MHz) 8.0nsp-p max (34.15 up to 40.15MHz) Frequency Data www.DataSheet.in www.DataSheet.in

BP3715MHz-2271_Soshin.pdf

This datasheet PDF includes multiple part numbers: BP37.15MHz-2271, BP3715MHz-2271. Please refer to the document for exact specifications by model.

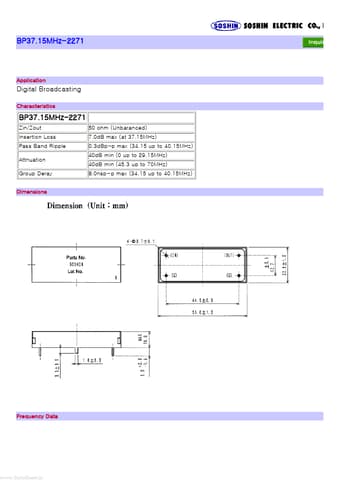

BP37.15MHz-2271 Datasheet Preview Page 2

Datasheet Details

Part number:

BP37.15MHz-2271, BP3715MHz-2271

Manufacturer:

Soshin

File Size:

81.65 KB

Description:

Digital broadcasting.

Note:

This datasheet PDF includes multiple part numbers: BP37.15MHz-2271, BP3715MHz-2271.
Please refer to the document for exact specifications by model.
