DBF70B001 Datasheet - Soshin

DBF70B001 2.4GHz Wireless LAN&Bluetooth

DBF70B001 2.4GHz Wireless LAN & Bluetooth Application for 2.4GHz Wireless LAN & Bluetooth Characteristics DBF70B001 Unbalance impedance Balance impedance Center frequency Pass band Insertion loss Ripple 50 ohm Nominal 100 ohm Nominal 2450MHz 2400-2500MHz 3.0 dB max (2400-2500MHz at 25 Deg.C) 3.3 dB max (2400-2500MHz at -40 up to +85 Deg.C) 1.0 dB max (2400-2500MHz) 48 dB min (880-960MHz) 48 dB min (1710-1980MHz) Attenuation 40 dB min (1880-1980MHz) 25 dB min (2110-2170MHz) 30 dB min (4800-500.

DBF70B001 Datasheet (85.83 KB)

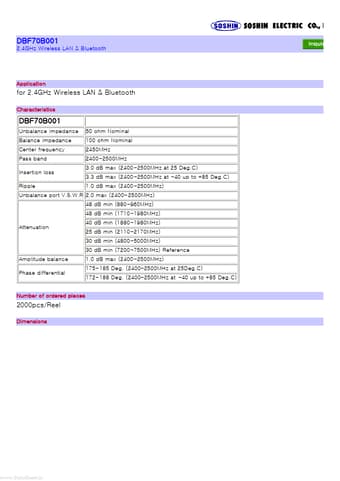

Preview of DBF70B001 PDF

Datasheet Details

Part number:

DBF70B001

Manufacturer:

Soshin

File Size:

85.83 KB

Description:

2.4ghz wireless lan&bluetooth.
