GFMB1 Datasheet - Soshin

GFMB1 FM US Band

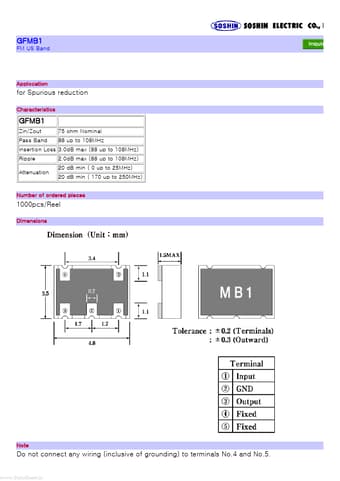

GFMB1 FM US Band Applocation for Spurious reduction Characteristics GFMB1 Zin/Zout Pass Band Ripple Attenuation 75 ohm Nominal 88 up to 108MHz 2.0dB max (88 up to 108MHz) 20 dB min ( 0 up to 25MHz) 20 dB min ( 170 up to 250MHz) Insertion Loss 3.0dB max (88 up to 108MHz) Number of ordered pieces 1000pcs/Reel Dimensions Note Do not connect any wiring (inclusive of grounding) to terminals No.4 and No.5. www.DataSheet.in They are provided solely for internal connections. Frequency Data ww.

GFMB1 Datasheet (78.80 KB)

GFMB1 Datasheet Preview — Preview of GFMB1 PDF

Datasheet Details

Part number:

GFMB1

Manufacturer:

Soshin

File Size:

78.80 KB

Description:

Fm us band.
