RC3003C-TB Common Mode Reactor

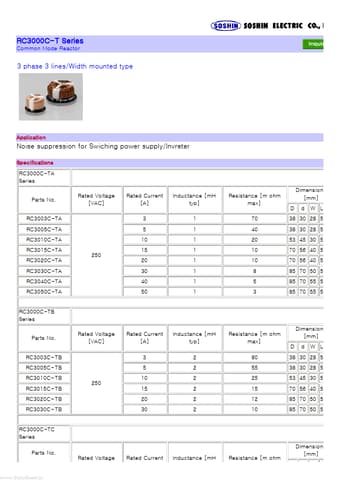

RC3000C-T Series Common Mode Reactor 3 phase 3 lines/Width mounted type Application Noise suppression for Swiching power supply/Invreter Specifications RC3000C-TA Series Parts No. RC3003C-TA RC3005C-TA RC3010C-TA RC3015C-TA RC3020C-TA RC3030C-TA RC3040C-TA RC3050C-TA 250 Rated Voltage [VAC] Rated Current [A] 3 5 10 15 20 30 40 50 Inductance [mH typ] 1 1 1 1 1 1 1 1 Resistance [m ohm max] 70 40 20 10 10 8 5 3 Dimensions [mm] D d W L 38 30 28 5 38 30 28 5 53 45 30 5 70 56 40 5 70 56 40 5 85 70.

RC3000C-T_Soshin.pdf

RC3003C-TB Datasheet Preview — This datasheet PDF includes multiple part numbers: RC3003C-TB, RC3000C-T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RC3003C-TB, RC3000C-T

Manufacturer:

Soshin

File Size:

89.56 KB

Description:

Common mode reactor.

Note:

This datasheet PDF includes multiple part numbers: RC3003C-TB, RC3000C-T.
Please refer to the document for exact specifications by model.
