RC31005B, RC31008B Datasheet - Renesas

RC31005B VersaClock 7 Programmable Jitter Attenuator

The RC310xxB are high-performance programmable jitter attenuators with network synchronization capabilities. The devices support JEDEC JESD204B/C for converter synchronization, and SyncE for network-based synchronization. The RC310xxB are ideal for driving converter circuits in wire-line infrastruct.

RC31005B Features

* ▪ 169fs RMS phase jitter at 156.25MHz (typ.) ▪ PCIe® Gen7 Common Clock jitter: 8fs RMS (typ.) ▪ Compliant with ITU-T G.8262 and G.8262.1 for synchronous Ethernet Equipment Clock (EEC/eEEC) ▪ Jitter attenuation with programmable loop bandwidth from 0.1Hz to 12kHz ▪ 1kHz to 650MHz LVDS/LP-HCSL outputs

RC31008B-Renesas.pdf

This datasheet PDF includes multiple part numbers: RC31005B, RC31008B. Please refer to the document for exact specifications by model.

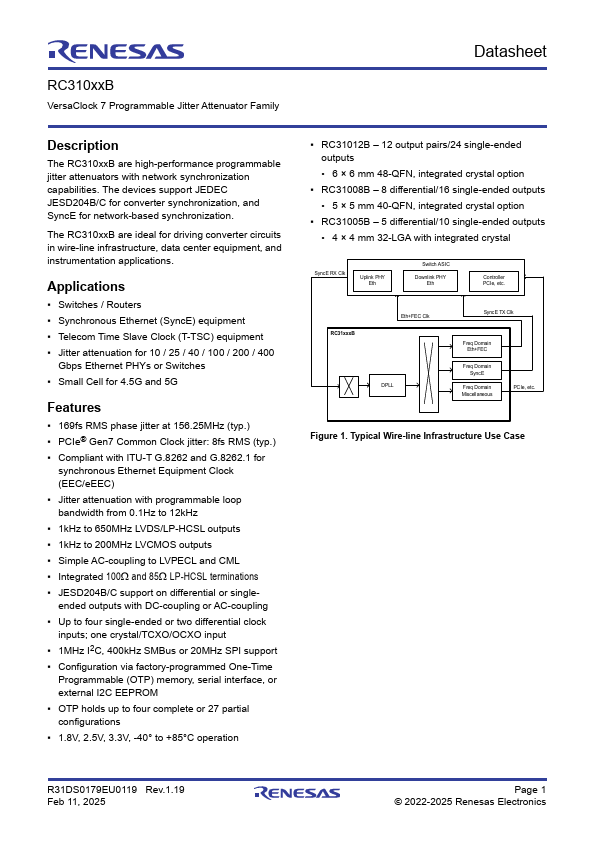

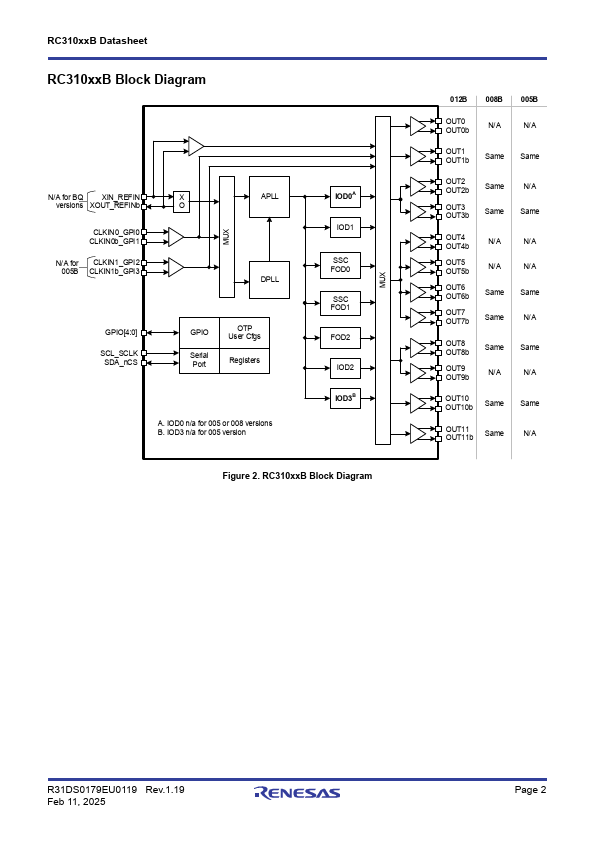

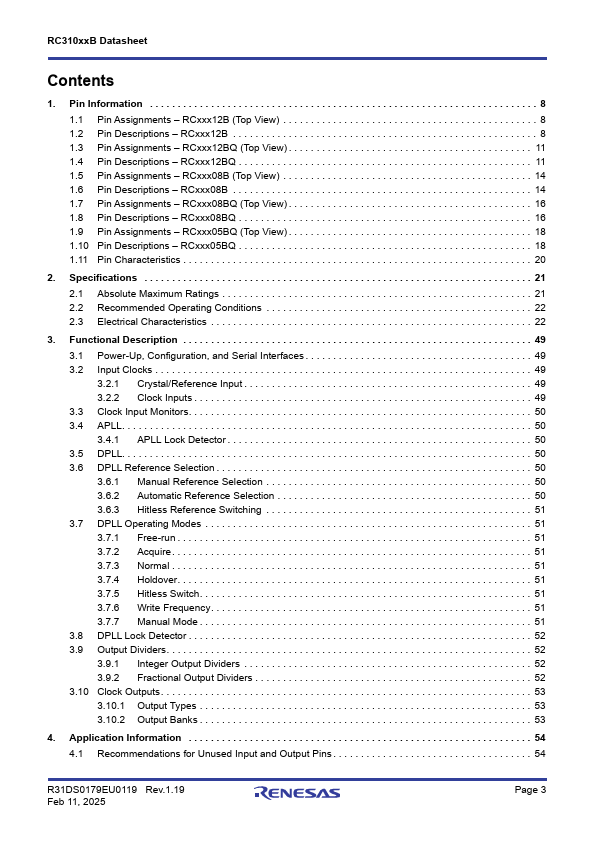

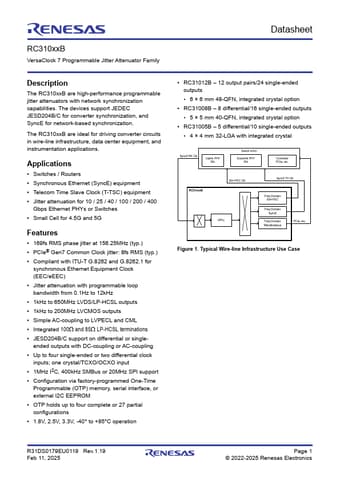

RC31005B Datasheet Preview Page 2 RC31005B Datasheet Preview Page 3

Datasheet Details

Part number:

RC31005B, RC31008B

Manufacturer:

Renesas ↗

File Size:

1.99 MB

Description:

Versaclock 7 programmable jitter attenuator.

Note:

This datasheet PDF includes multiple part numbers: RC31005B, RC31008B.
Please refer to the document for exact specifications by model.
