SF2000A-AS Datasheet - Soshin

SF2000A-AS Common mode:Wide band/High attenuation Dood

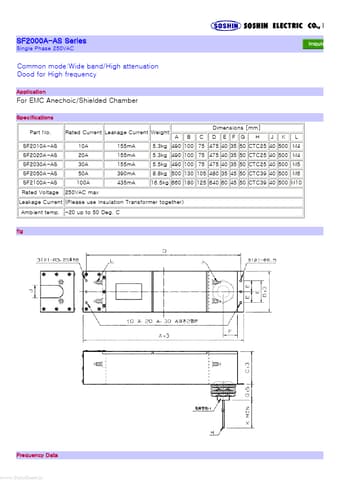

SF2000A-AS Series Single Phase 250VAC Common mode:Wide band/High attenuation Dood for High frequency Application For EMC Anechoic/Shielded Chamber Specifications Part No. SF2010A-AS SF2020A-AS SF2030A-AS SF2050A-AS SF2100A-AS Rated Voltage Rated Current Leakage Current Weight 10A 20A 30A 50A 100A 250VAC max 155mA 155mA 155mA 390mA 435mA Dimensions [mm] A B C D E F G H J K L 5.3kg 490 100 75 475 40 35 50 CTC25 40 500 M4 5.3kg 490 100 75 475 40 35 50 CTC25 40 500 M4 5.5kg 490 100 75 475 40 35 5.

SF2000A-AS_Soshin.pdf
