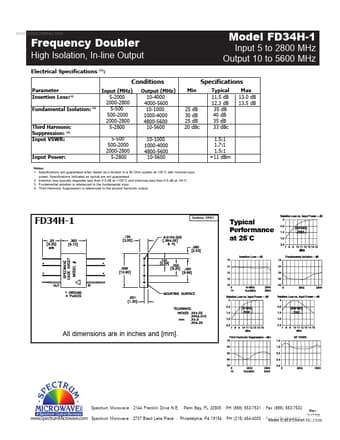

FD34H-1 Frequency Doubler

www.DataSheet4U.com Frequency Doubler Electrical Specifications Parameter Insertion Loss:(2) Fundamental Isolation: (3) Third Harmonic Suppression: (4) Input VSWR: Input Power: (1) High Isolation, In-line Output : Input 5 to 2800 MHz Output 10 to 5600 MHz Specifications Min 25 dB 30 dB 25 dB 20 dBc Typical 11.5 dB 12.3 dB 35 dB 40 dB 35 dB 33 dBc 1.5:1 1.7:1 1.5:1 +11 dBm Max 13.0 dB 13.5 dB Model FD34H-1 Conditions Input (MHz) 5-2000 2000-2800 5-500 500-2000 2000-2800 5-2800 5-500 500-2000.
