FD3401 Datasheet, Mosfet, semi one

FD3401 Features

  • Mosfet
  • VDS = -12V,ID = -3A RDS(ON) < 85 m Ω @ VGS=-2.5V RDS(ON) < 65 m Ω @ VGS=-4.5V FD3401 D G S Schematic diagram
  • High Power and current handing capability
  • Le

PDF File Details

Part number:

FD3401

Manufacturer:

semi one

File Size:

718.09kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The FD3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2

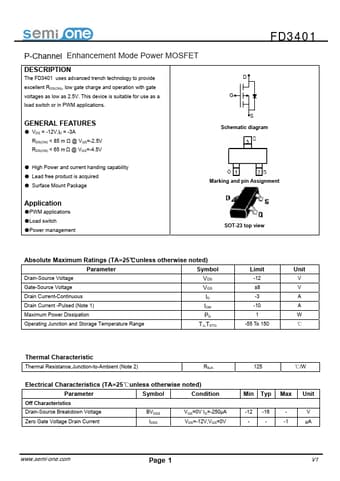

Datasheet Preview: FD3401 📥 Download PDF (718.09kb)
Page 2 of FD3401 Page 3 of FD3401

FD3401 Application

  • Applications GENERAL FEATURES
  • VDS = -12V,ID = -3A RDS(ON) < 85 m Ω @ VGS=-2.5V RDS(ON) < 65 m Ω @ VGS=-4.5V FD3401 D G S Schematic diagr
