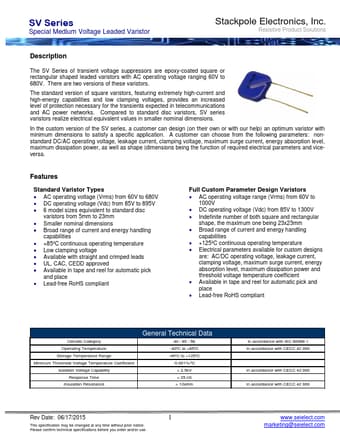

Description
The SV Series of transient voltage suppressors are epoxy-coated square or rectangular shaped leaded varistors with AC operating voltage ranging 60V to 680V.
Features
- Standard Varistor Types.
- AC operating voltage (Vrms) from 60V to 680V.
- DC operating voltage (Vdc) from 85V to 895V.
- 6 model sizes equivalent to standard disc
varistors from 5mm to 23mm.
- Smaller nominal dimensions.
- Broad range of current and energy handling
capabilities.
- +85ºC continuous operating temperature.
- Low clamping voltage.
- Available with straight and crimped leads.
- UL, CAC, CEDD approved.
- Available.
