SV320K14

Special Medium Voltage Leaded Varistors

SV320K14 Features

* Standard Varistor Types

* AC operating voltage (Vrms) from 60V to 680V

* DC operating voltage (Vdc) from 85V to 895V

* 6 model sizes equivalent to standard disc varistors from 5mm to 23mm

* Smaller nominal dimensions

* Broad range of current and energy handlin

SV320K14 General Description

The SV Series of transient voltage suppressors are epoxy-coated square or rectangular shaped leaded varistors with AC operating voltage ranging 60V to 680V. There are two versions of these varistors. The standard version of square varistors, featuring extremely high-current and high-energy capabilit.

SV320K14 Datasheet (88.60 KB)

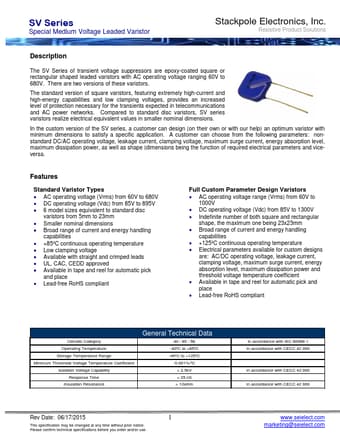

Preview of SV320K14 PDF

Datasheet Details

Part number:

SV320K14

Manufacturer:

Stackpole

File Size:

88.60 KB

Description:

Special medium voltage leaded varistors.
