SSW-408

DC-4 GHz High Power GaAs MMIC SPDT Switch

SSW-408 Features

* High Compression Point : up to 4 Watts

* HIgh Linearity : TOIP +55dBm @2GHz

* Low DC Power Consumption

* Low Insertion Loss : 1.2dB at 2GHz

* Operates from Positive or Negative 3V to 8V Supplies

* Low Cost Small Outline Plastic Package -20 dB -30

SSW-408 General Description

Stanford Microdevices’ SSW-408 is a high performance Gallium Arsenide Field Effect Transistor MMIC switch housed in a low-cost surface mountable small outline plastic package. This single-pole, double-throw reflective switch consumes less than 50uA and can operate with positive or negative 3V to 8V .

SSW-408 Datasheet (104.77 KB)

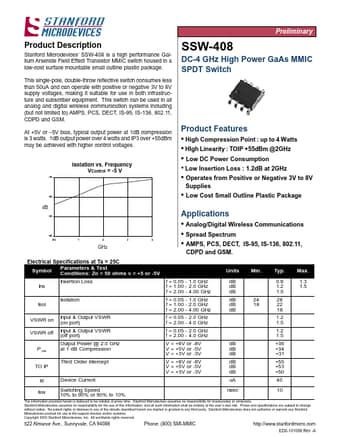

Preview of SSW-408 PDF

Datasheet Details

Part number:

SSW-408

Manufacturer:

Stanford Microdevices

File Size:

104.77 KB

Description:

Dc-4 ghz high power gaas mmic spdt switch.
