BRPG1201W Datasheet - Stanley Electric

BRPG1201W BICOLOR CHIP TYPE LED

s BICOLOR CHIP TYPE LED 1201W Series Flat Lens Type 3X2.5mm s Absolute Maximum Ratings Power Dissipation Forward Current Peak Forward Current Reverse Voltage Operating Temp. Storage Temp. Derating Pb IF IFM VR Topr Tstg ∆IF Red Yellow BRPY 75 30 70 4 -30~+85 -40~+100 The current derating for operation applies when temperature is above 25°C. IFM Condition : tw ≤_ 1msec, Duty ≤_ 1/20 Red Green BRPG 75 30 70 4 -30~+85 -40~+100 0.42(DC), 0.93(Pulse) Red Pure Green BRBG.

BRPG1201W Datasheet (50.12 KB)

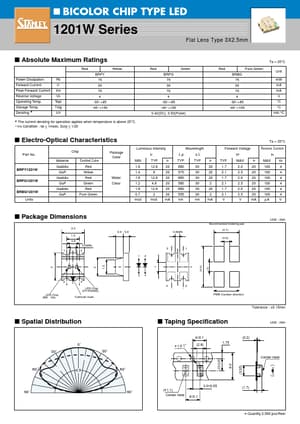

Preview of BRPG1201W PDF

Datasheet Details

Part number:

BRPG1201W

Manufacturer:

Stanley Electric

File Size:

50.12 KB

Description:

Bicolor chip type led.
