MAA2262S Datasheet - Stanley Electric

MAA2262S Single Color LED

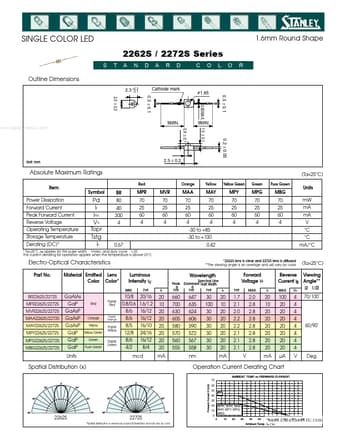

SINGLE COLOR LED f 1.6mm Round Shape 2262S / 2272S Series S n Outline Dimensions 2.3 +0.2 -0.1 2.0 ± 0.2 Cathode mark 0.5 ± 0.1 o / 1.65 T A N D A R D C O L O R 0.5 ± 0.1 1.1 0.65MAX. 9MIN. 9MIN. 1.5 ± 0.1 0.9 ± 0.1 www.DataSheet4U.com 0.2 ± 0.05 Unit: mm 2.5 ± 0.2 n Absolute Maximum Ratings Item Power Dissipation Forward Current Peak Forward Current Reverse Voltage Operating Temperature Storage Temperature Derating (DC) Red Orange Yellow Yellow Green Green Pure Green.

MAA2262S_StanleyElectric.pdf

Preview of MAA2262S PDF

Datasheet Details

Part number:

MAA2262S

Manufacturer:

Stanley Electric

File Size:

230.50 KB

Description:

Single color led.
