MAA4361F, Single Color 3.6 Right Angle Type

4361F Series Single Color 3.6 Right Angle Type .

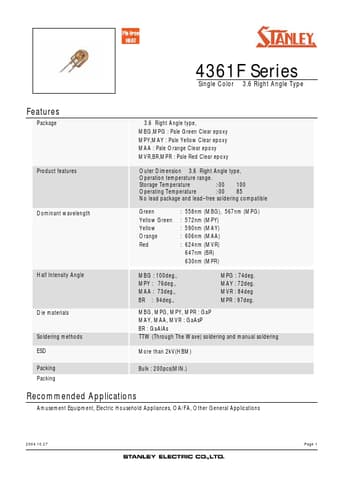

datasheet Preview Page 1 from Datasheet4u.com

MAA4361F_StanleyElectric.pdf

MAA4361F Datasheet Preview — Preview of MAA4361F PDF

Datasheet Details

Part number:

MAA4361F

Manufacturer:

Stanley Electric

File Size:

342.14 KB

Description:

Single Color 3.6 Right Angle Type

Features

* Package 3.6 Right Angle type, MBG,MPG : Pale Green Clear epoxy MPY,MAY : Pale Yellow Clear epoxy MAA : Pale Orange Clear epoxy MVR,BR,MPR : Pale Red Clear epoxy Product features Outer Dimension 3.6 Right Angle type, Operation temperature range. Storage Temperature :-30 100 Operating Temperature :-30

Applications

* Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications 2004.10.27 Page 1 4361F Series Single Color 3.6 Right Angle Type Color and Luminous Intensity Emitted Color Lens Color Dominant Wavelength d (nm) TYP. IF MIN. (Ta=25 ) Luminous Intensity Iv (mcd) TYP. IF Pa
