A733 Datasheet - Stanson Technology

A733 PNP TRANSISTOR

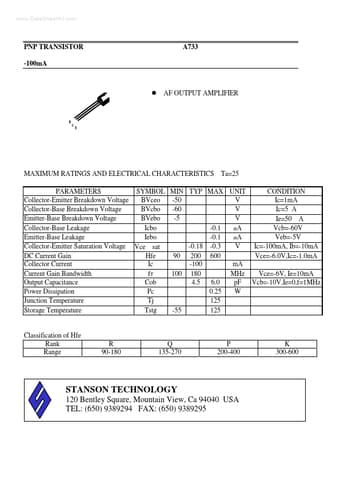

www.DataSheet4U.com PNP TRANSISTOR -100mA A733 AF OUTPUT AMPLIFIER MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS¡] Ta=25¢J¡^ PARAMETERS SYMBOL MIN TYP MAX UNIT CONDITION Collector-Emitter Breakdown Voltage BVceo -50 V Ic=1mA Collector-Base Breakdown Voltage BVcbo -60 V Ic=5uA Emitter-Base Breakdown Voltage BVebo -5 V Ie=50£g A Collector-Base Leakage Icbo -0.1 uA Vcb=-60V Emitter-Base Leakage Iebo -0.1 uA Veb=-5V Collector-Emitter Saturation Voltage Vce¡] sat¡ ^ -0.18 -0.3 V Ic=-100mA, Ib=.

A733_StansonTechnology.pdf

A733 Datasheet Preview — Preview of A733 PDF

Datasheet Details

Part number:

A733

Manufacturer:

Stanson Technology

File Size:

105.80 KB

Description:

Pnp transistor.
