EM1050 Datasheet - Suberton

EM1050 Omnidirectional Electret Condenser Microphone

EM1050, EM1050P Omnidirectional Electret Condenser Microphone Sensitivity Directivity Impedance Current Consumption Standard Operation Voltage Sensitivity Reduction S/N Ratio Sensitivity Range 0dB = 1V/Pa. 1KHz Omnidirectional Low Impedance Max. 0.5mA 4.5V Within -3dB at 1.5V More than 60dB -34 ± 2dB, -36 ± 2dB, -38 ± 2dB, -40 ± 2dB, -42 ± 2dB, -44 ± 2dB, Typical Frequency Response Curve: Schematic Diagram: .

EM1050 Datasheet (871.66 KB)

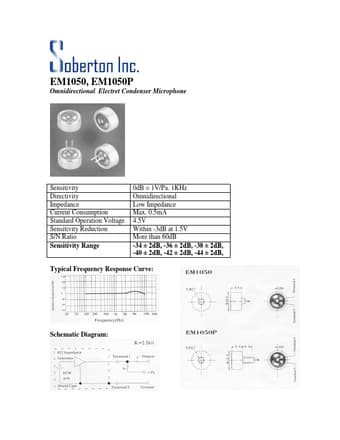

EM1050 Datasheet Preview — Preview of EM1050 PDF

Datasheet Details

Part number:

EM1050

Manufacturer:

Suberton

File Size:

871.66 KB

Description:

Omnidirectional electret condenser microphone.
