Datasheet Details
- Part number
- EM1
- Manufacturer
- Sanken ↗
- File Size
- 195.74 KB
- Datasheet
- EM1-Sanken.pdf
- Description
- Silicon Diode

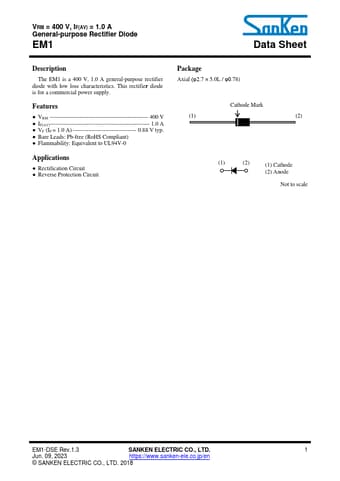

EM1 Description
VRM = 400 V, IF(AV) = 1.0 A General-purpose Rectifier Diode EM1 Data Sheet .
The EM1 is a 400 V, 1.
EM1 Features
* VRM
* - 400 V
* IF(AV)
EM1 Applications
* Rectification Circuit
* Reverse Protection Circuit
Package
Axial (φ2.7 × 5.0L / φ0.78)
Cathode Mark
(1)
(2)
(1)
(2)
(1) Cathode
(2) Anode
Not to scale
EM1-DSE Rev.1.3
SANKEN ELECTRIC CO. , LTD. 1
Jun. 09, 2023
https://www. sanken-ele. co. jp/en
© SANKEN ELECTRIC CO. , LTD. 2018
