CDRH2D09NP-1R2MC Datasheet - Sumida

SMD Power Inductor

CDRH2D09NP-1R2MC General Description

* Ferrite drum core construction. × × × × * Magnetically shielded. * L W H:3.2 3.2 1.0 mm Max. * Product weight: 28mg(Ref.) * Moisture Sensitivity Level: 1 * RoHS compliance. * Halogen Free available. ℃ ℃Environmental Data * Operating te.

CDRH2D09NP-1R2MC Datasheet (188.97 KB)

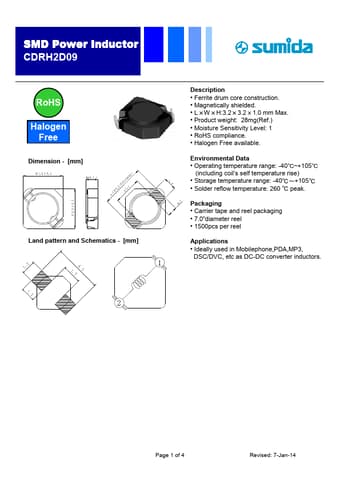

Preview of CDRH2D09NP-1R2MC PDF

Datasheet Details

Part number:

CDRH2D09NP-1R2MC

Manufacturer:

Sumida

File Size:

188.97 KB

Description:

Smd power inductor.
SMD Power Inductor CDRH2D09 RoHS Halogen Free Dimension - [mm] ※3.0±0.2 MAX.1.0 ※3.0±0.2 3.3±0.2(ELEφCT2R.O1DE) Land pattern and Schematics - [.
