CDRH2D09NP-3R0MC, CDRH2D09 SMD Power Inductor

CDRH2D09NP-3R0MC Description

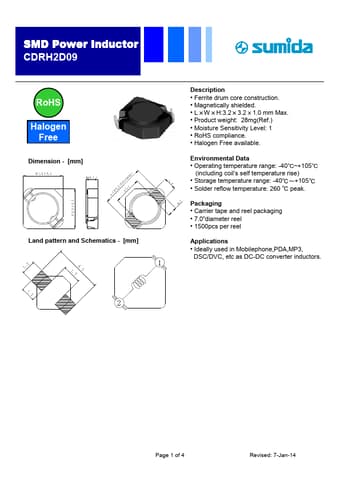

SMD Power Inductor CDRH2D09 RoHS Halogen Free Dimension - [mm] ※3.0±0.2 MAX.1.0 ※3.0±0.2 3.3±0.2(ELEφCT2R.O1DE) Land pattern and Schematics - [.
Ferrite drum core construction. Magnetically shielded. L W H:3. Product weight: 28mg(R.

CDRH2D09NP-3R0MC Applications

* Ideally used in Mobilephone,PDA,MP3, DSC/DVC, etc as DC-DC converter inductors. 1 Page 1 of 4 Revised: 7-Jan-14 SMD Power Inductor CDRH2D09 Electrical Characteristics Part Name Stamp Inductance μ( H) ※[ within ] 1 ΩD. C. R . (m ) ℃[ within ] (at 20 ) （ ）※Saturation Current A2 ℃at 20

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDRH2D09NP-3R0MC, CDRH2D09. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CDRH2D09NP-3R0MC, CDRH2D09
Manufacturer
Sumida
File Size
188.97 KB
Datasheet
CDRH2D09-Sumida.pdf
Description
SMD Power Inductor
Note
This datasheet PDF includes multiple part numbers: CDRH2D09NP-3R0MC, CDRH2D09.
Please refer to the document for exact specifications by model.
