CDRH2D11-100NC Datasheet - Sumida

POWER INDUCTORS

CDRH2D11-100NC General Description

* Ferrite drum core construction. × × × × * Magnetically shielded. * L W H:3.2 3.2 1.2 mm Max. * Product weight: 36mg(Ref.) * Moisture Sensitivity Level: 1 * RoHS compliance. * Halogen Free available. ℃ ℃Environmental Data * Operating te.

CDRH2D11-100NC Datasheet (166.59 KB)

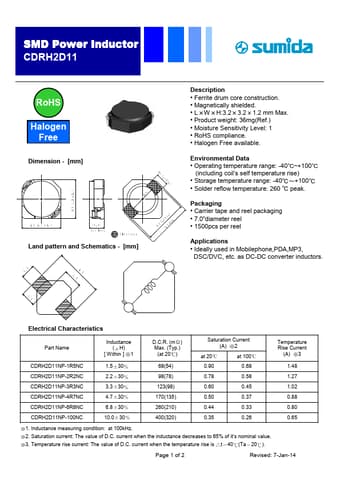

Preview of CDRH2D11-100NC PDF

Datasheet Details

Part number:

CDRH2D11-100NC

Manufacturer:

Sumida

File Size:

166.59 KB

Description:

Power inductors.
SMD Power Inductor CDRH2D11 RoHS Halogen Free Dimension - [mm] ※1 3.0 ±0.2 ※13.0±0.2 (1.1) 1.2 Max. ※2 1.0±0.1 φ2.1 Electrode ※2 3.3±4.05.2Max..
