CDRH2D11-1R5NC

POWER INDUCTORS

CDRH2D11-1R5NC General Description



* Ferrite drum core construction. × × × ×

* Magnetically shielded.

* L W H:3.2 3.2 1.2 mm Max.

* Product weight: 36mg(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Halogen Free available. ℃ ℃Environmental Data

* Operating te.

CDRH2D11-1R5NC Datasheet (166.59 KB)

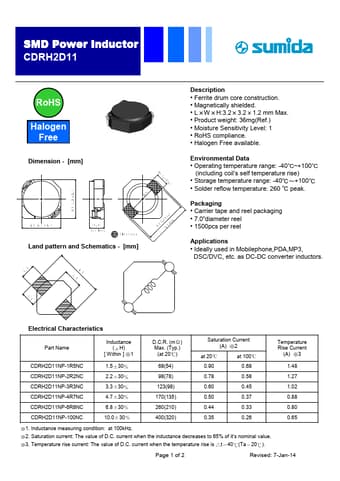

Preview of CDRH2D11-1R5NC PDF

Datasheet Details

Part number:

CDRH2D11-1R5NC

Manufacturer:

Sumida

File Size:

166.59 KB

Description:

Power inductors.
SMD Power Inductor CDRH2D11 RoHS Halogen Free Dimension - [mm] ※1 3.0 ±0.2 ※13.0±0.2 (1.1) 1.2 Max. ※2 1.0±0.1 φ2.1 Electrode ※2 3.3±4.05.2Max..
