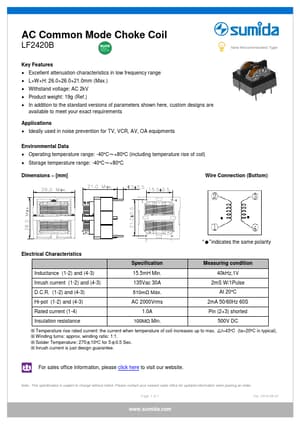

LF2420B Datasheet, Coil, Sumida

LF2420B Features

• Coil
• Excellent attenuation characteristics in low frequency range
• L×W×H: 26.0×26.0×21.0mm (Max.)
• Withstand voltage: AC 2kV
• Product weight: 19g (Ref.)

PDF File Details

Part number:

LF2420B

Manufacturer:

Sumida

File Size:

266.08kb

Download:

📄 Datasheet

Description:

Ac common mode choke coil.

LF2420B Application

• Applications
• Ideally used in noise prevention for TV, VCR, AV, OA equipments Environmental Data
• Operating temperature range: -4
