LF2005-S Current Transducer

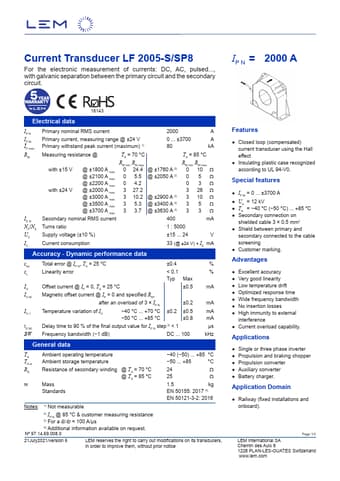

Current Transducer LF 2005-S/SP8 For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 2000 A 16143 Electrical data IP N Primary nominal RMS current 2000 A IP M Primary current, measuring range @ ±24 V ÎP max Primary withstand peak current (maximum) 1) 0 ±3700 A 80 kA RM Measuring resistance @ TA = 70 °C TA = 85 °C with ±15 V with ±24 V @ ±1800 A max @ ±2100 A.

LF2005-S Features

* Closed loop (compensated) current transducer using the Hall effect

* Insulating plastic case recognized according to UL 94-V0. Special features

* IP M = 0 ±3700 A

* Ud = 12 kV

* TA =

* 40 °C (

* 50 °C) +85 °C

* Secondary connection on shielded cable 3 × 0.5 m

LF2005-S Datasheet (374.76 KB)

LF2005-S Datasheet Preview — Preview of LF2005-S PDF

Datasheet Details

Part number:

LF2005-S

Manufacturer:

LEM

File Size:

374.76 KB

Description:

Current transducer.
