LF205-P Datasheet (LEM) - Current Transducer

LF205-P, Current Transducer

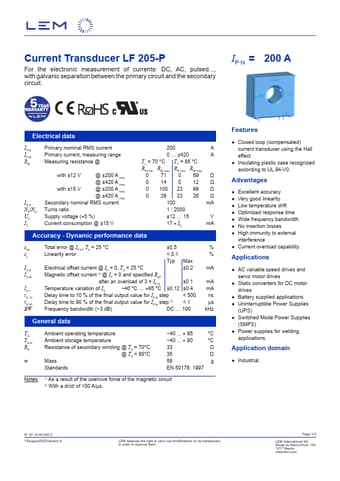

Current Transducer LF 205-P For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit.

IP N = 200 A Electrical data IP N Primary nominal RMS current IP M Primary current, measuring range RM Measuring resistance @ with ±12 V @ ±200 A max @ ±420 A max with ±15 V @ ±200 A max @ ±420 A max IS N Secondary nominal RMS current NP/NS Turns ratio UC Supply voltage (+5 %) IC Curre

LF205-P Features

* Closed loop (compensated) current transducer using the Hall effect

* Insulating plastic case recognized according to UL 94-V0. Advantages

* Excellent accuracy

* Very good linearity

* Low temperature drift

* Optimized response time

* Wide frequency bandwidth

* No ins
